Subcontract laser cutting & folding · Dudley, West Midlands
Send us all the details and we will come back to you as soon as possible with a price and lead time. Flatbed and 5 axis laser cutting, press braking and finishing under one roof in the West Midlands since 2006.
Accepts DXF · DWG · STEP · IGS · PDF · priced within 24 hoursTwo very different jobs, two different routes through the business. Pick the one that sounds like you and we will get you to the right team.
Route one
You need a reliable supplier for repeat production, overflow capacity or engineering support.
For OEMs, tier 1 and 2 suppliers, fabricators and engineering companies.
Route two
You have your drawing, CAD or physical component and need a fast quotation and lead time.
For one-off projects, prototypes, maintenance and small batch work. £70 minimum order.
| Material | Maximum thickness | Cutting gas | Secondary operations |
|---|---|---|---|
| Mild steelS275 · CR4 · S355 · Durbar chequer · Cor-ten · armoured plate | 20mm / 0.5 min | Oxygen, nitrogen, air | Folding, painting, drilling, tapping |
| Stainless steel304 · 316 · 430 · Hastelloy · others on request | 12mm / 0.5 min | Nitrogen, air | Folding, drilling, tapping |
| Aluminium5251 · 1050 · 5083 · treadplate, others next day | 12mm / 0.5 min | Nitrogen, air to 2mm | Folding, drilling, tapping |
| Galvanised & ZintecPre-galvanised mild steel and coated steels | 5mm | Nitrogen | Folding, drilling, tapping |
| Brass & bronzeYellow metals, fibre laser only · grades on request | 3mm / 0.5 min | Nitrogen | Folding |
| CopperFibre laser only · grades on request | 3mm | Oxygen, nitrogen | Folding, drilling, tapping |
The bit most of them cannot do
A flatbed laser cuts flat sheet. Our Trumpf 5-axis machines cut pressings, spinnings and formed tube in three dimensions, trimming and piercing on the curve. We design and build the fixtures for it ourselves, in house, with our own welding cell.

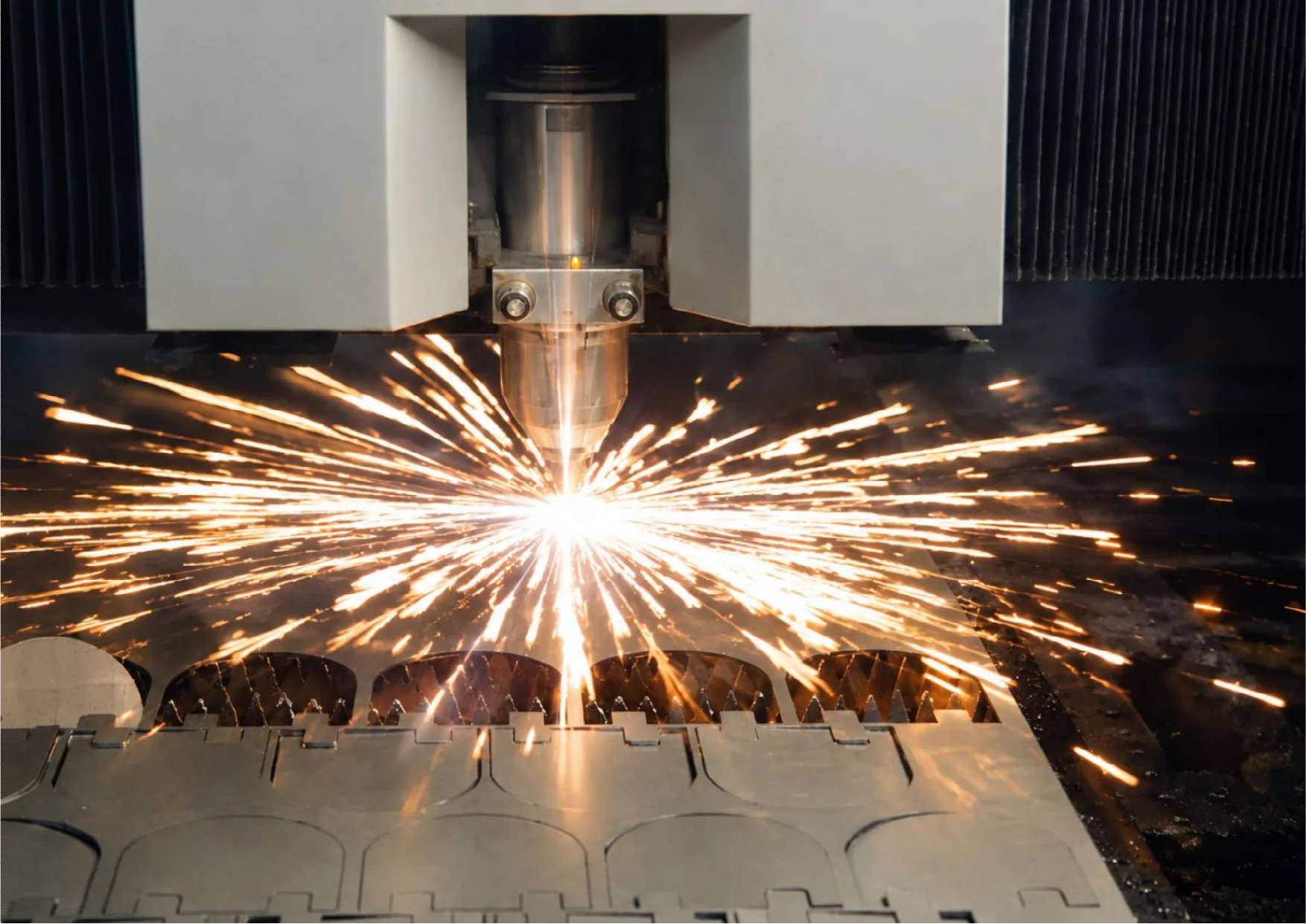

Low and high volume flat profiles across every material above. Nested to minimise material, with parts held so they cannot tip during the cut.
Cutting and trimming formed components that a flatbed cannot touch. In-house fixture design, built in our own welding cell.
Slots, holes and mitres cut into round, square and formed tube, on the same machines and to the same tolerances as our formed work.
Three press brakes, with a maximum folding length of 4 metres on the 220 tonne machine, and a wide range of tooling held. Specialist tooling can be bought in and the cost amortised across the piece part price.
Powder coating and painting through approved suppliers, plus DG8 parts washing for aerospace and medical work where components have to arrive clean.
One-offs and design iterations cut without tooling, so changes cost time rather than money. Laser scanning where you have a part but no drawing.
A DXF, DWG, STEP or IGS file is ideal. A PDF, a sketch or an existing part is fine too, our CAD team will work from any of them.
An estimator prices the job and flags any issues, along with potential solutions and alternatives. If we have drawn the part from scratch, you will always have final sign off before the job is released to production.
Back within 24 hours. Three working days for flatbed, five for 5-axis, and same day when the schedule allows.
Prefer to talk it through first? Call 01384 245095 and ask for the estimating team.
Or browse for a file. Multiple parts in one go is fine.
Choose filesCAD files accepted directly. No emailing them separately.
Held across mild steel, stainless, aluminium and yellow metals without any special arrangement.
Tighter tolerance available once we have reviewed the part. Talk to us before you commit the drawing.
ISIR and PPAP submissions produced in house, from experience supplying automotive production.
Customer specific inspection reports using CMM and laser measuring, so quality holds across a production run.
Capacity
Three shifts across five days, plant maintained by the original manufacturers, and 80% of our capital equipment less than five years old. Mild steel, stainless and aluminium held in stock, so most jobs start without waiting on a steel delivery.
Case · Cardio Caddy
Defibrillator cabinets needing laser cutting, folding, press braking, machining and powder coating. We simulated the folds and checked for press brake collisions before cutting a single blank, then nested the parts to minimise material.
Case · RheEnergise
Long duration energy storage demonstrator built from stacked aluminium contours of a real Welsh hillside. Designed in sections to travel in standard suitcases and survive being assembled over and over again.
“My team and I have been using GF Laser for prototype and small batch laser cutting and folding for a number of years now. They have always offered a superb service and fast turnarounds, all at a competitive cost.”Matt HolmesPowertrain Research & Development, Triumph Motorcycles
“What is most important to us is that GF Laser work in partnership with us to meet OUR customer’s needs.”Chris ForrestManaging Director, FIS Loveday Ltd
“The 20mm mild steel plates they cut for us were great quality, they also provided powder coating and prompt delivery. Much better service than other companies in the area that we used previously.”Joe HickmanJ5 Fitness
Send us the drawing and we will come back with a price and a lead time.
Send a drawing
